基本參數:
加工定制: |
是 |
---|---|
材質: |
不銹鋼 |
規格: |
RTH |
連接型式: |
螺紋、法蘭 |
適用范圍: |
冷卻液、熱水、冷水、油、壓縮空氣、低壓蒸汽。 |
品牌: |
瑞特斯 |
型號: |
RTH-S |
使用條件:
適用介質:冷卻液、熱水、冷水、油、壓縮空氣、低壓蒸汽。
壓力:1.8Mpa
溫度:120°c
轉速:200rpm~3000rpm

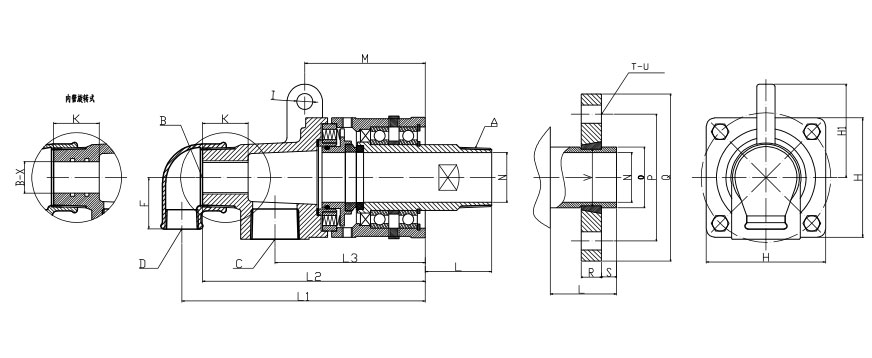

規格 | 型號 | A | C | I | M | H | H1 | L | L3 | L5 | N |
25 | RTH-D25 | R1 | Rc1 | 10 | 82 | 74 | 56 | 48 | 99 | 123 | 23 |
32 | RTH-D32 | R1-1/4 | Rc1-1/4 | 12 | 93 | 87 | 66 | 53 | 113 | 139 | 31 |
40 | RTH-D40 | R1-1/2 | Rc1-1/2 | 12 | 98 | 96 | 71 | 60 | 122 | 160 | 38 |
50 | RTH-D50 | R2 | Rc2 | 16 | 119 | 118 | 92 | 66 | 148 | 188 | 49 |
65 | RTH-D65 | R2-1/2 | Rc2-1/2 | 12 | 80 | 150 | 99 | 73 | 165 | 216 | 64 |
80 | RTH-D80 | R3 | Rc3 | 14 | 85 | 165 | 105 | 75 | 175 | 222 | 75 |
100 | RTH-D100 | R4 | Rc4 | 16 | 100 | 205 | 133 | 107 | 210 | 285 | 98 |
