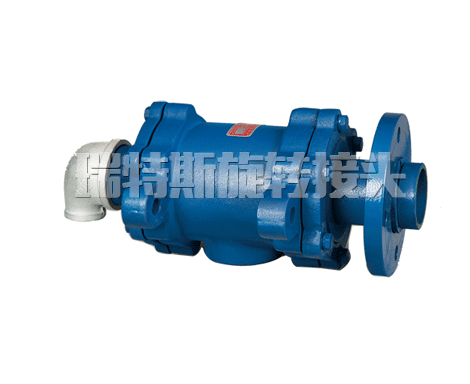

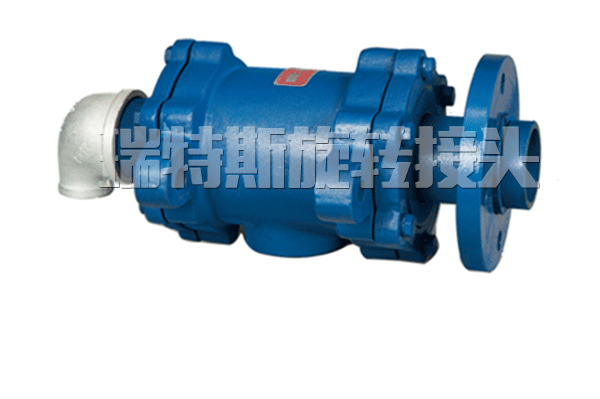

QS-GF(65-100)型旋轉接頭適用范圍:
轉速:100RPM
溫度:220℃
壓力:1.8MPa
適用介質:飽和蒸汽、過熱蒸汽、過熱水
雙向流通內管固定式——半分環法蘭連接

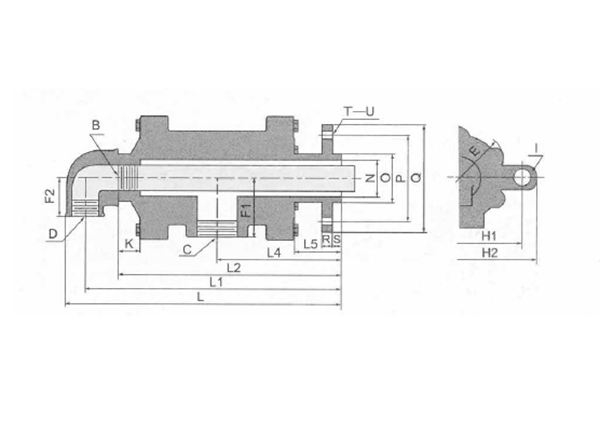

規格
|
型號
|
B
|
C
|
D
|
E
|
F1
|
F2
|
H1
|
H2
|
I
|
K
|
L
|
L1
|
L2
|
L4
|
L5
|
N
|
O
|
P
|
Q
|
R
|
S
|
T
|
U
|
65
|
QS-GF65-32
|
40
|
Rc2
|
Rc1-1/4
|
190
|
85
|
62
|
220
|
270
|
20
|
40
|
412
|
386
|
364
|
205
|
90
|
64
|
75
|
145
|
185
|
20
|
18
|
4
|
18
|
80
|
QS-GF80-40
|
46
|
Rc2-1/2
|
Rc1-1/2
|
230
|
110
|
72
|
300
|
355
|
26
|
40
|
488
|
453
|
423
|
232
|
97
|
75
|
90
|
160
|
200
|
20
|
20
|
8
|
18
|
100
|
QS-GF100-65
|
73
|
Rc2-1/2
|
Rc2-1/2
|
261
|
120
|
90
|
300
|
354
|
26
|
30
|
512
|
469
|
431
|
267
|
90
|
98
|
112
|
180
|
220
|
22
|
22
|
8
|
18
|
